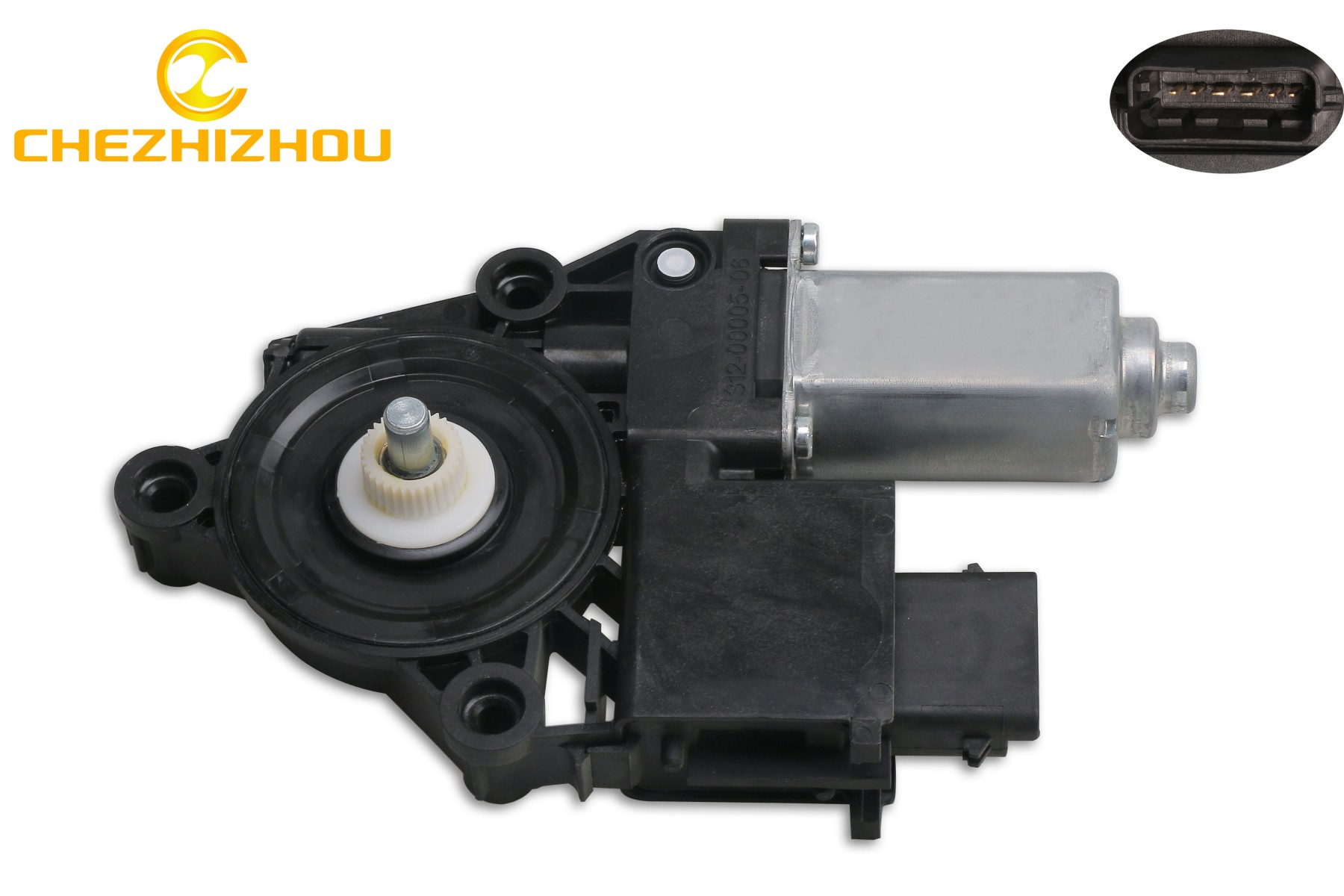

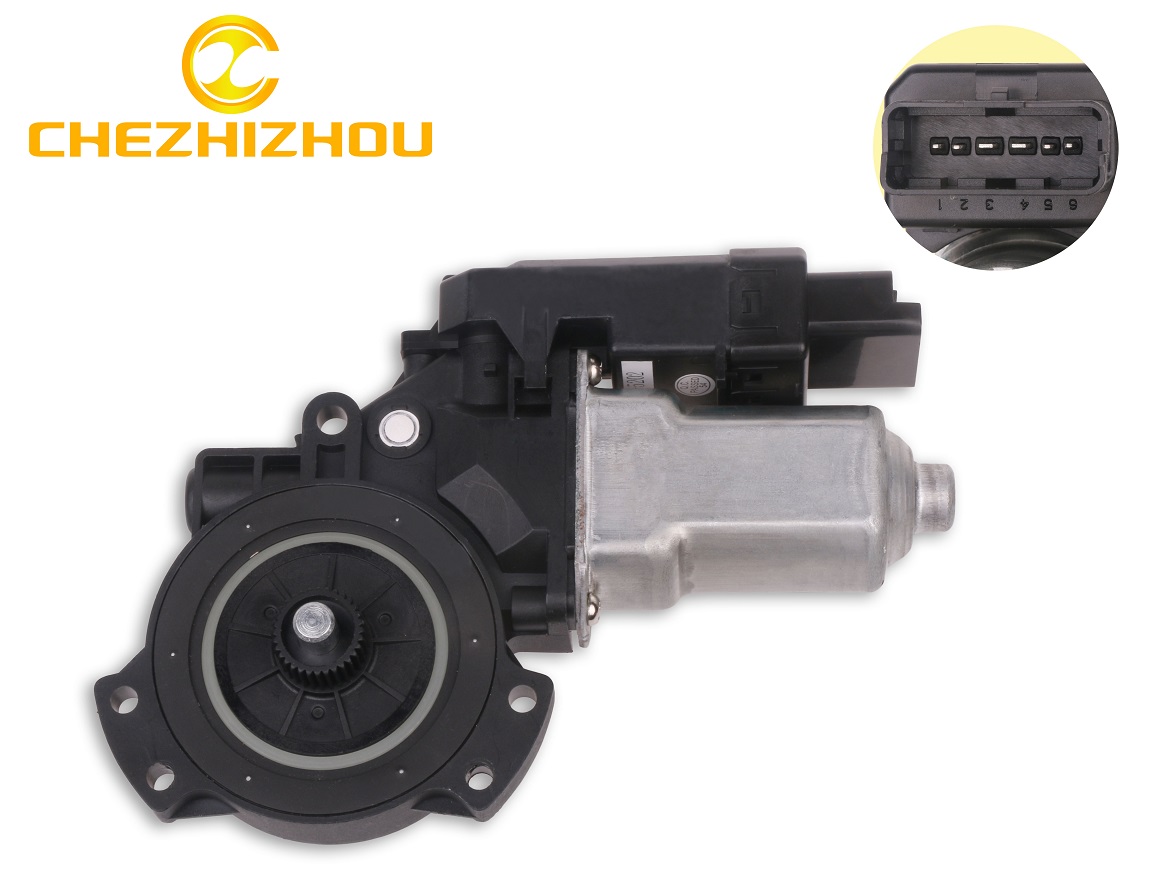

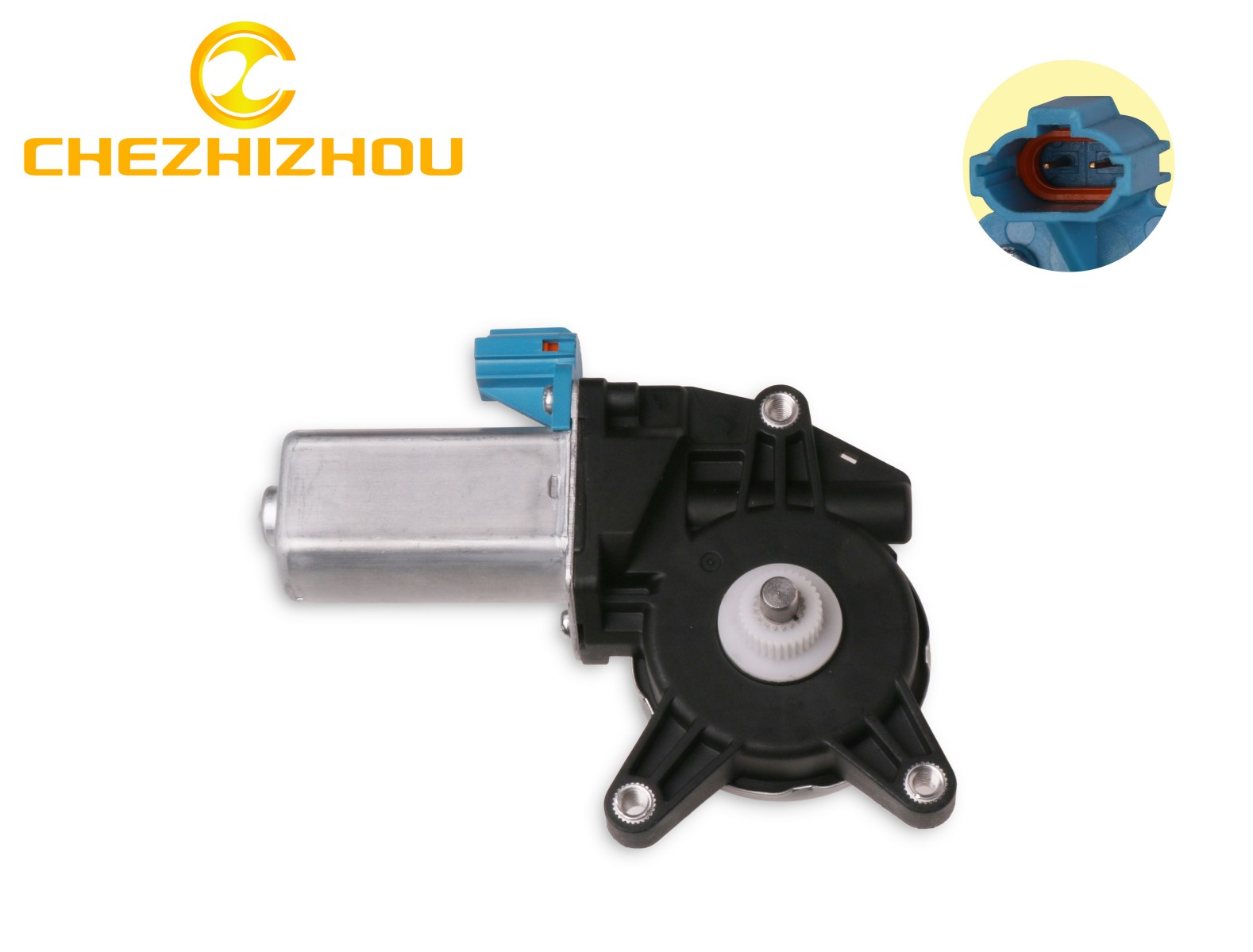

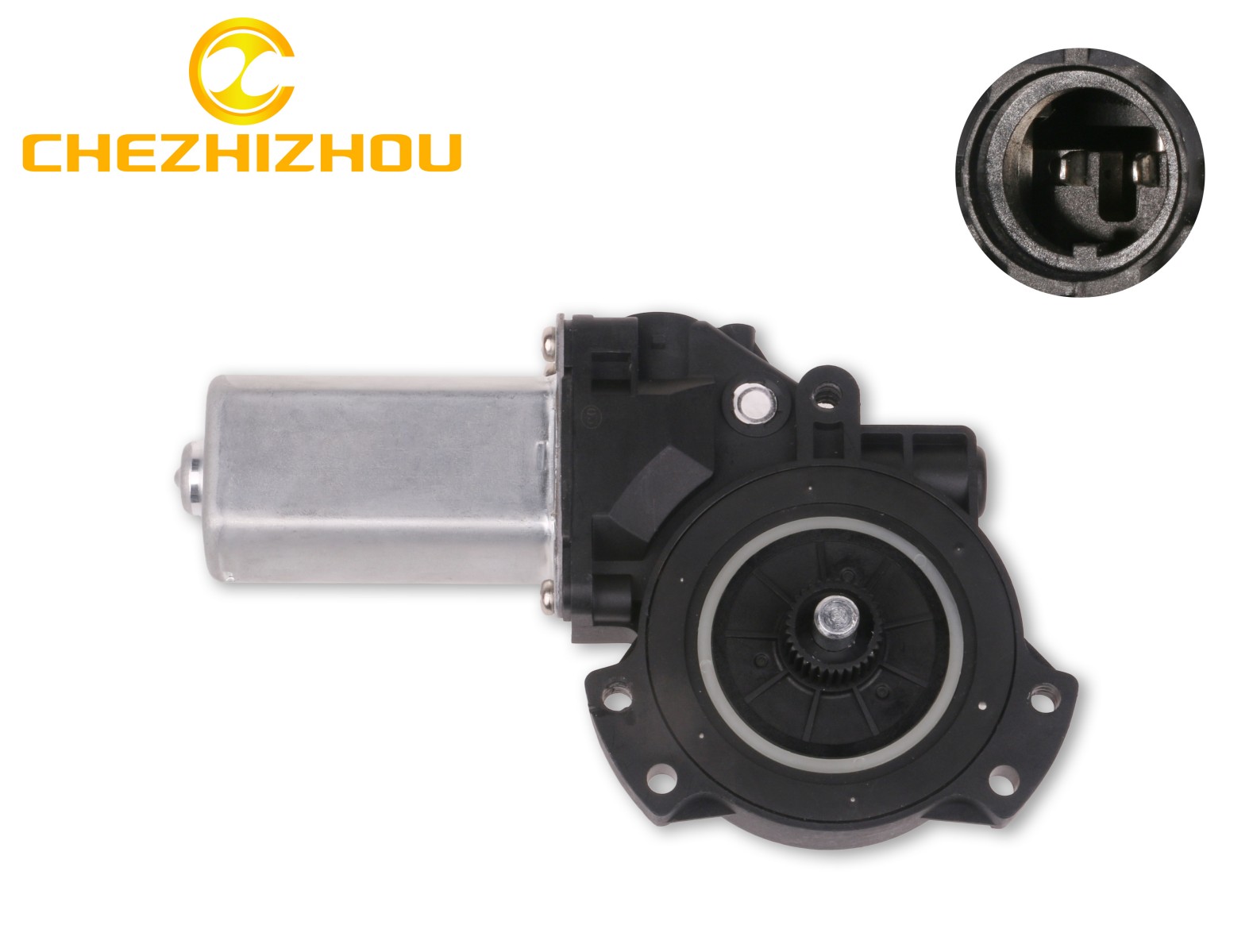

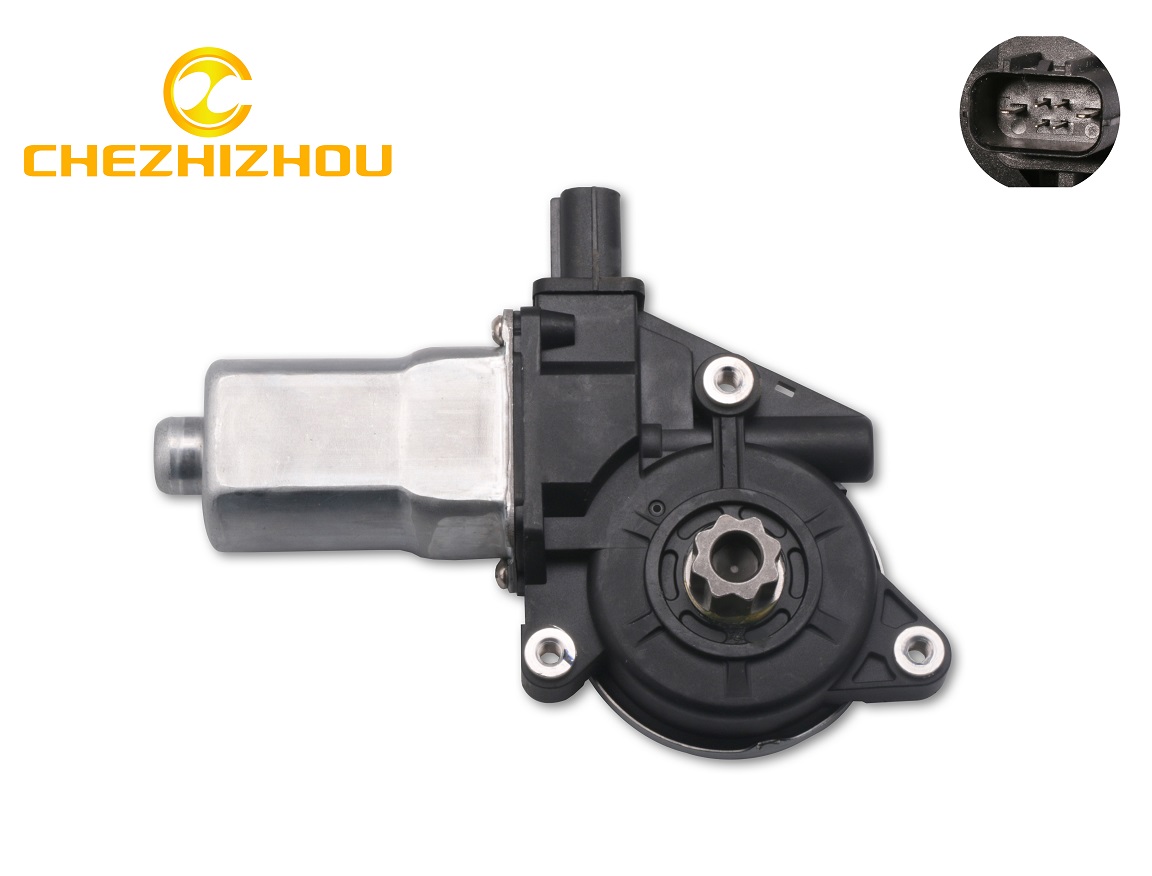

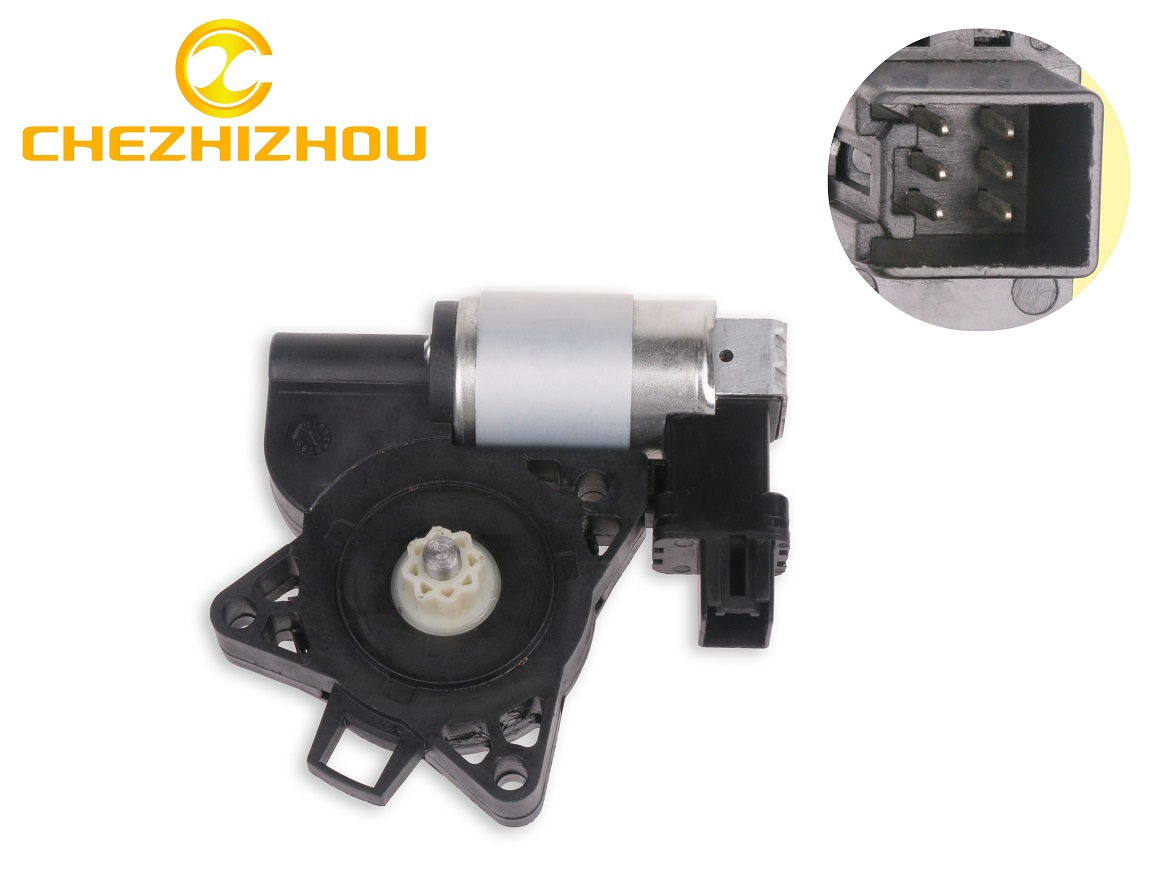

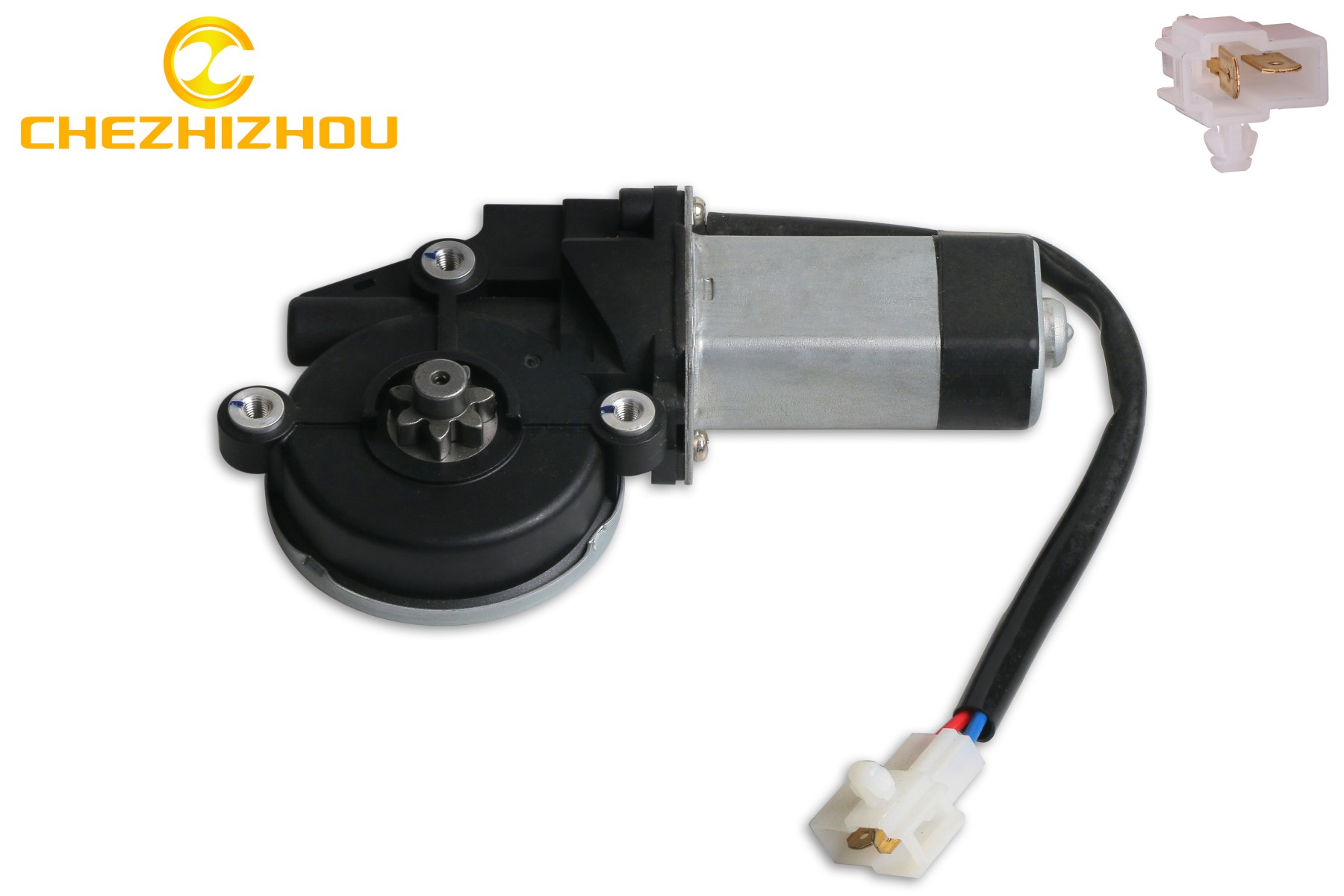

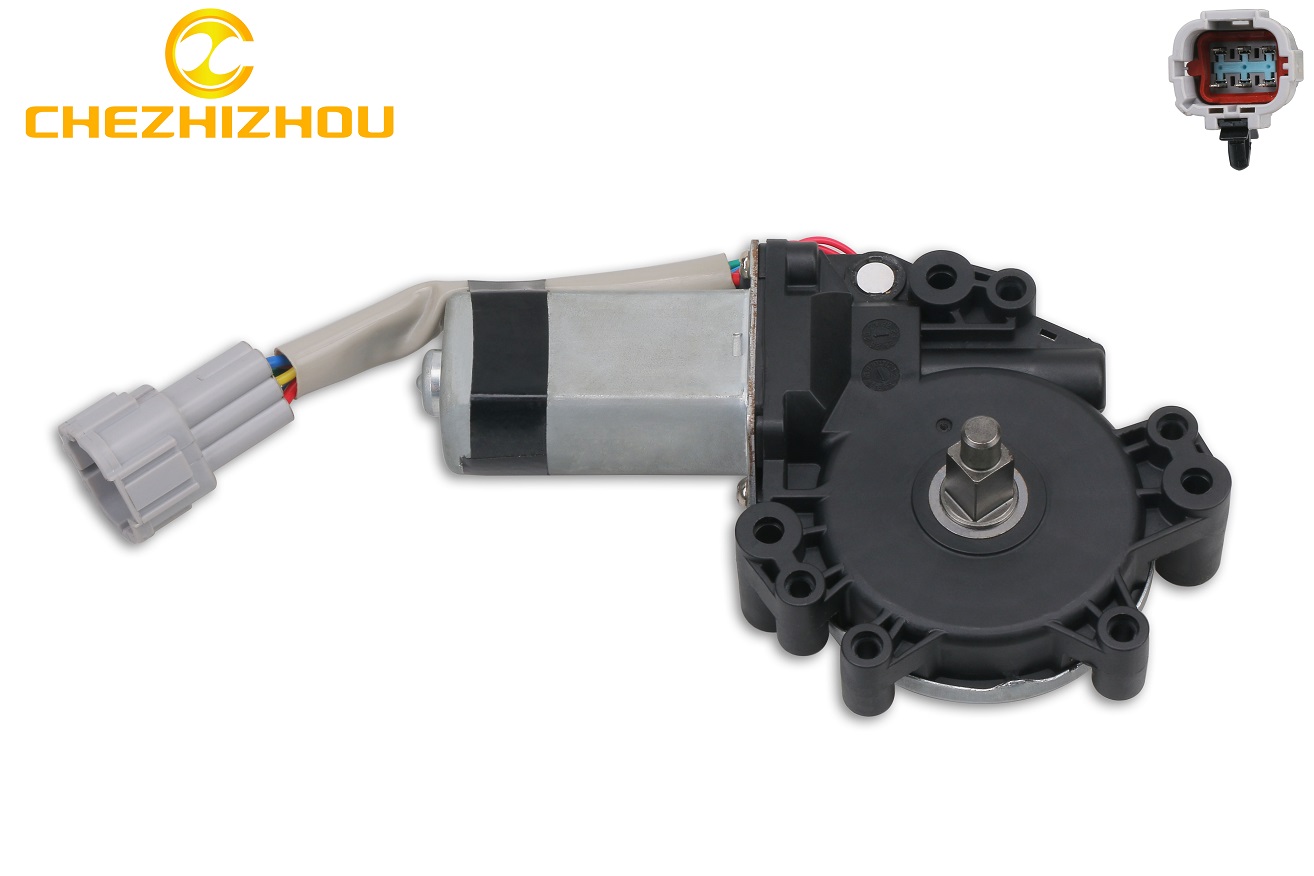

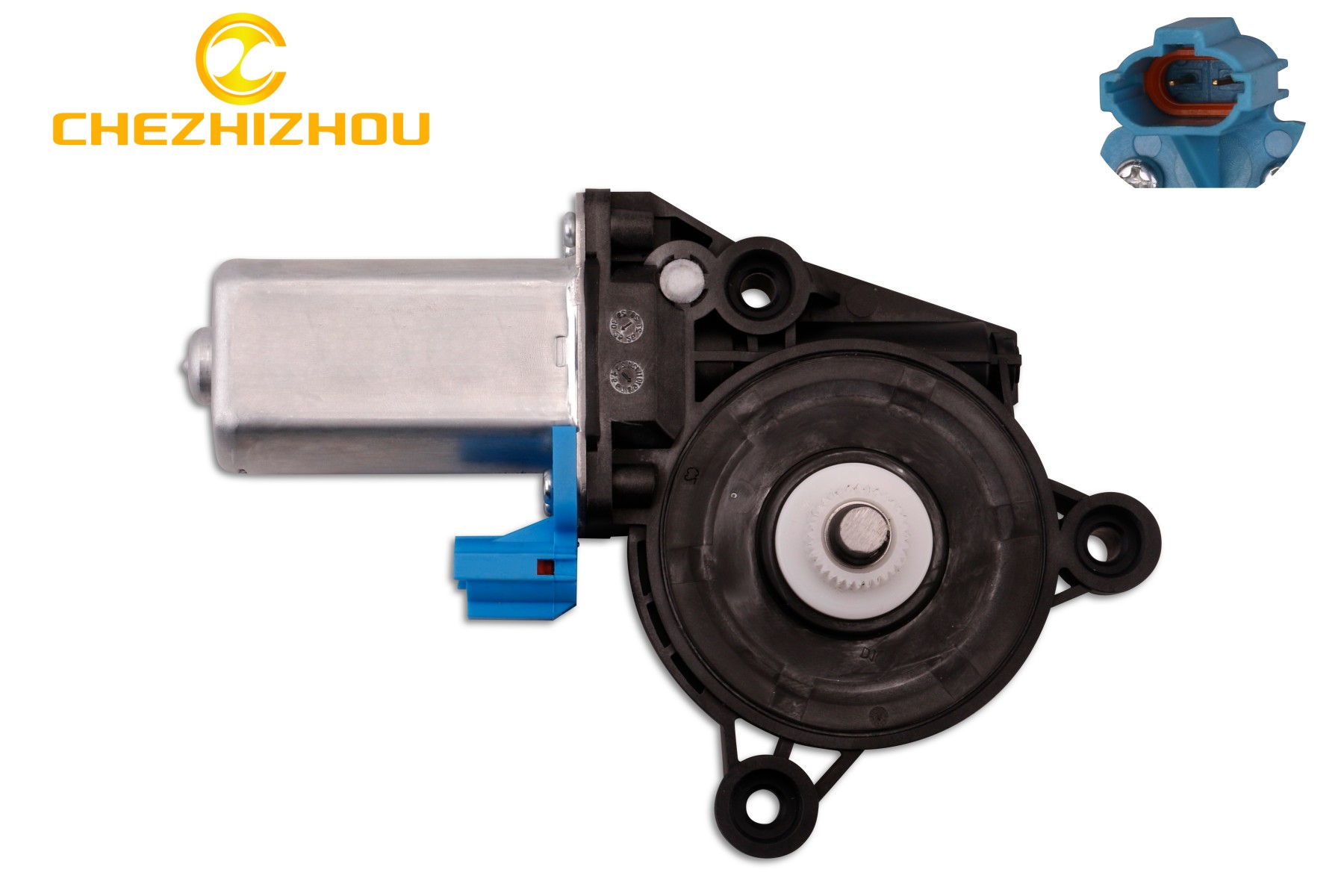

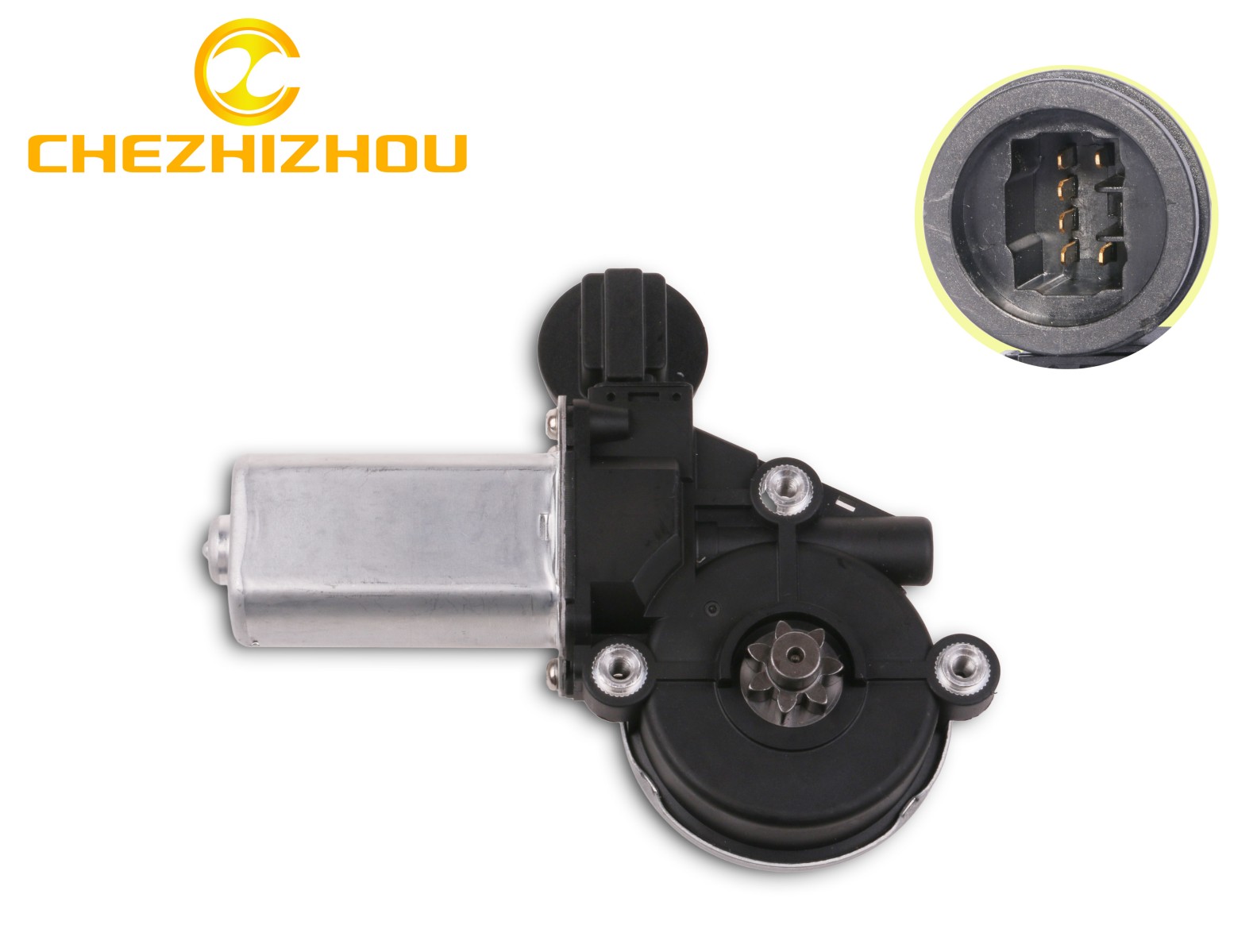

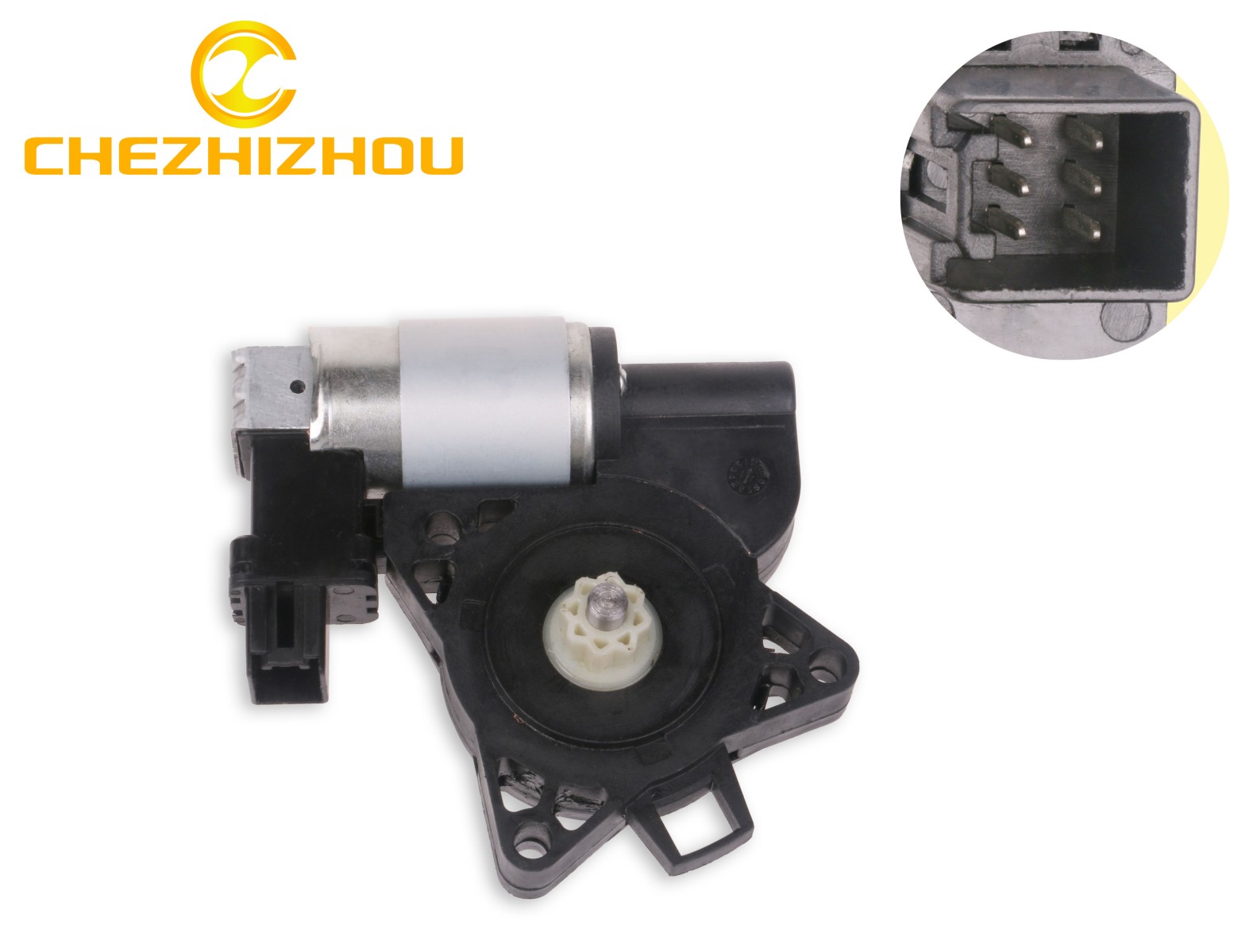

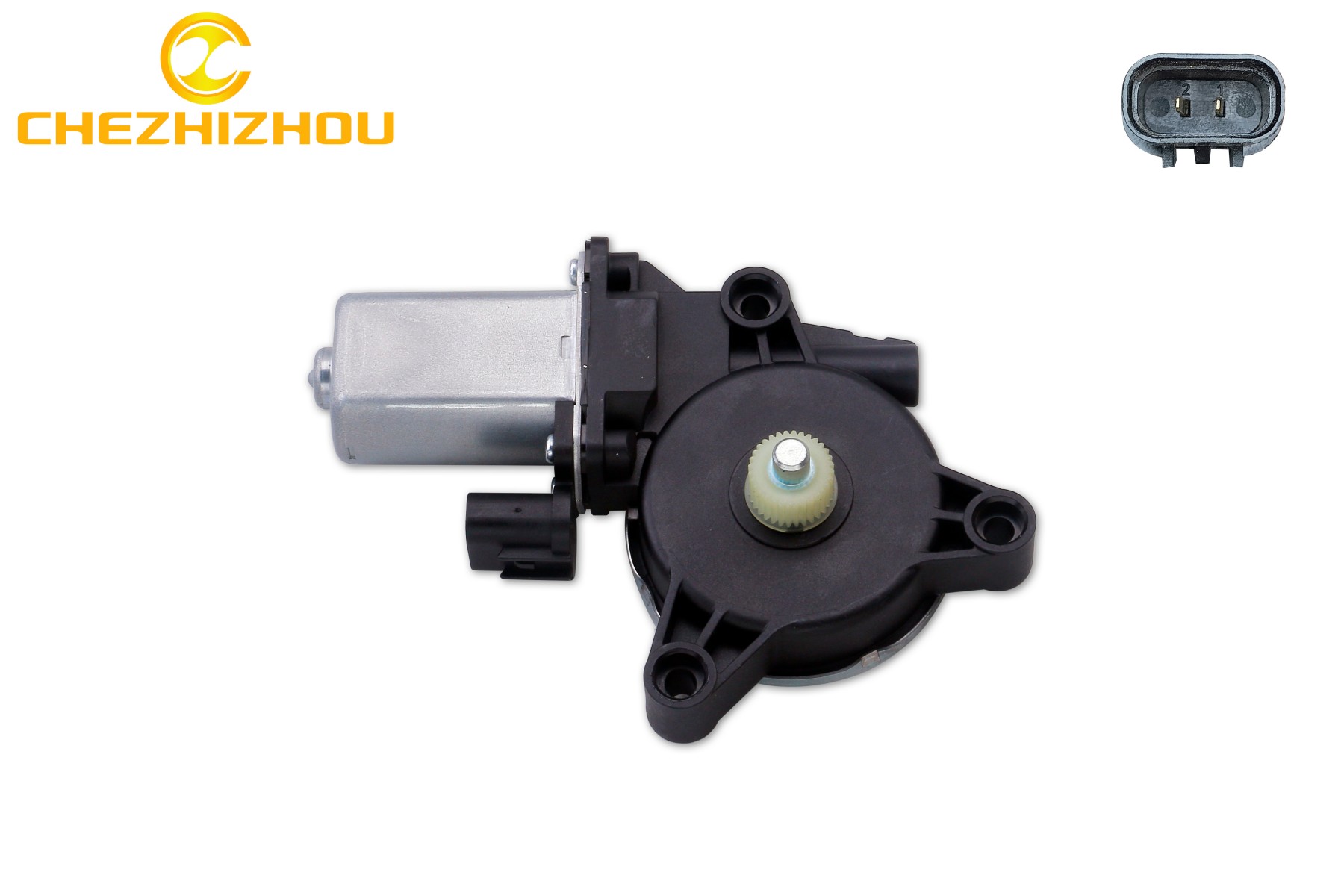

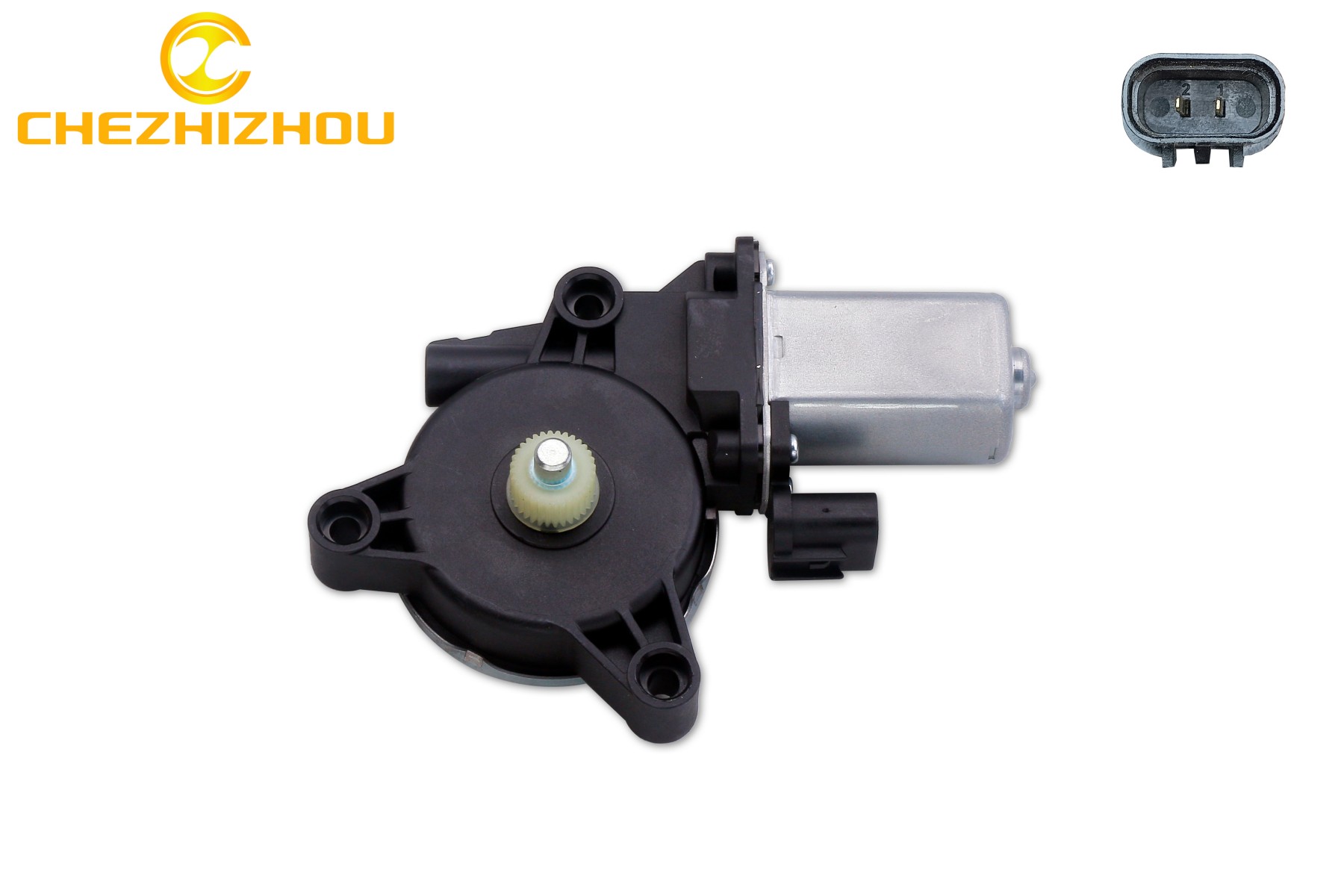

Power Window Motor

Window Motor

Univeral motor

Motor Type: DC Micro motor

Power supply:13±0.5 v DC (0 ohm)

Maximum torque:8Nm/10Nm/12Nm ±15%

No-load speed:90(±10)rpm(Reduction ratio1:65)

                         80(±10)rpm(Reduction ratio1:75)

No-load current:≤ 2.0A

Load speed:50–80 rpm(Reduction ratio1:65)

                   40–70 rpm(Reduction ratio1:75）

Load current:< 12 A (@ 3Nm)

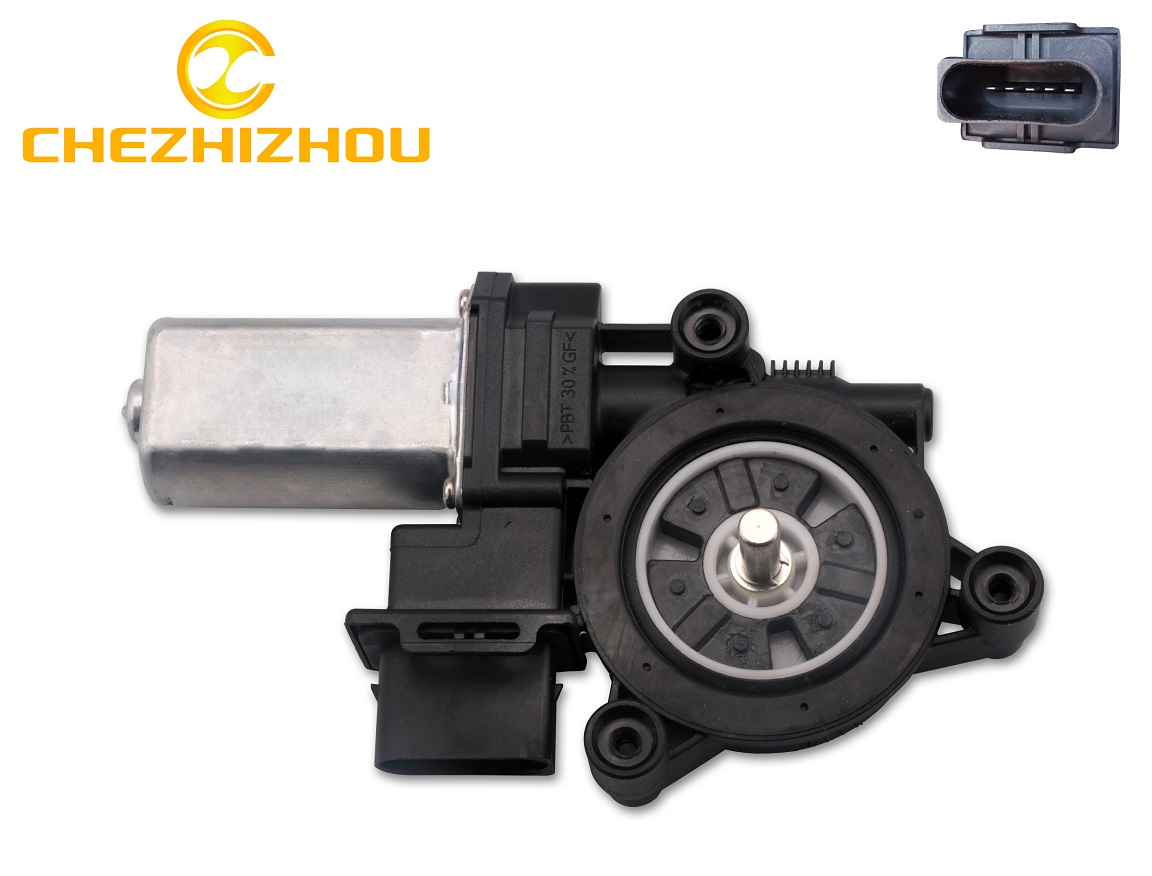

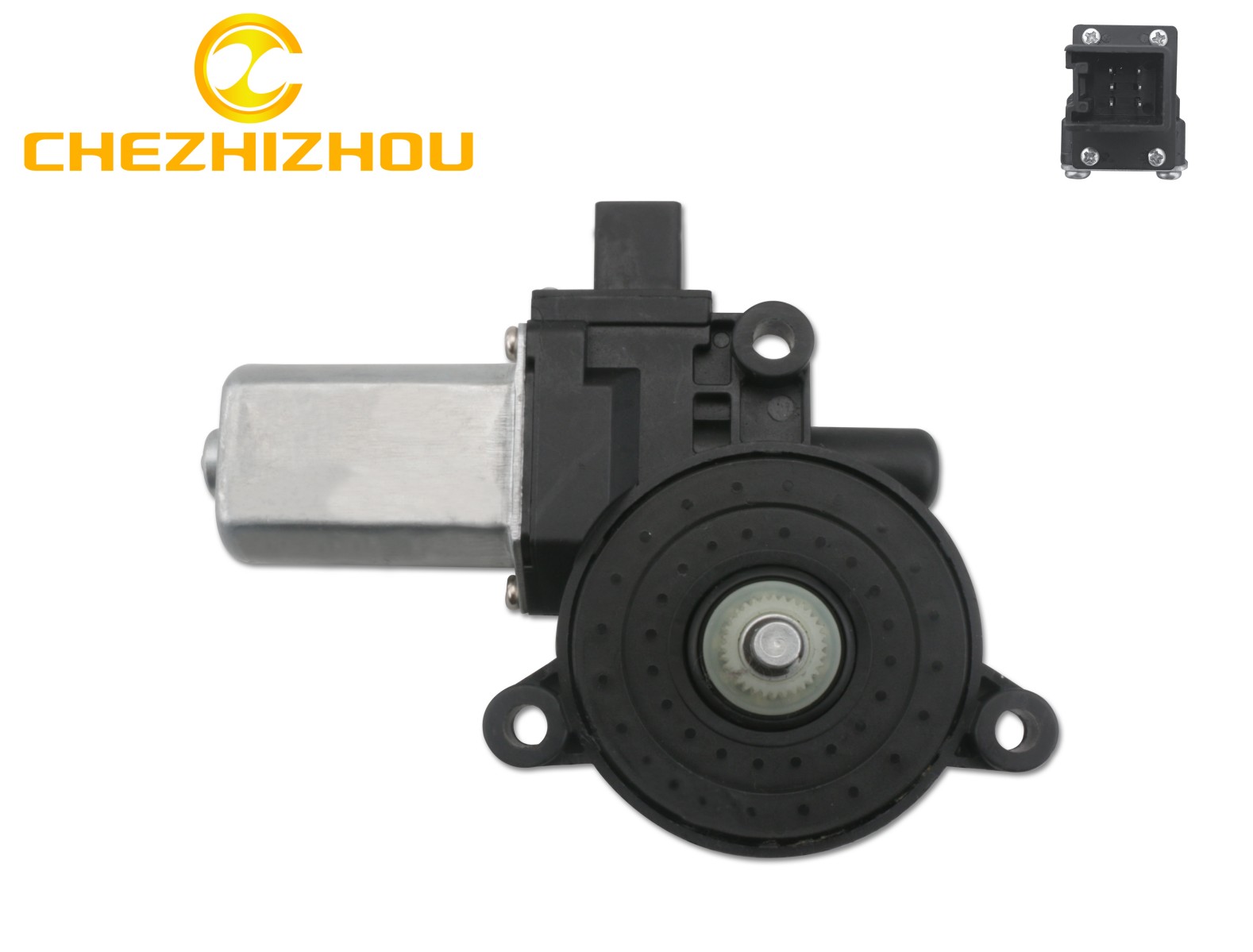

One-key auto&anti-pinch motor

Motor Type: DC Micro motor

Power supply:13±0.5 v DC (0 ohm)

Maximum torque:8Nm/10Nm/12Nm ±15%

No-load speed:90(±10)rpm(Reduction ratio1:65)

                         80(±10)rpm(Reduction ratio1:75)

Noise:≤48dB(A)(13v No-load test distance 500m)

EMC Level: 3 ( cispr25-2016)

Load speed:50 – 80 rpm(Reduction ratio1:65)

                   40 – 70 rpm(Reduction ratio1:75)

Load current:< 12 A (@ 3Nm)

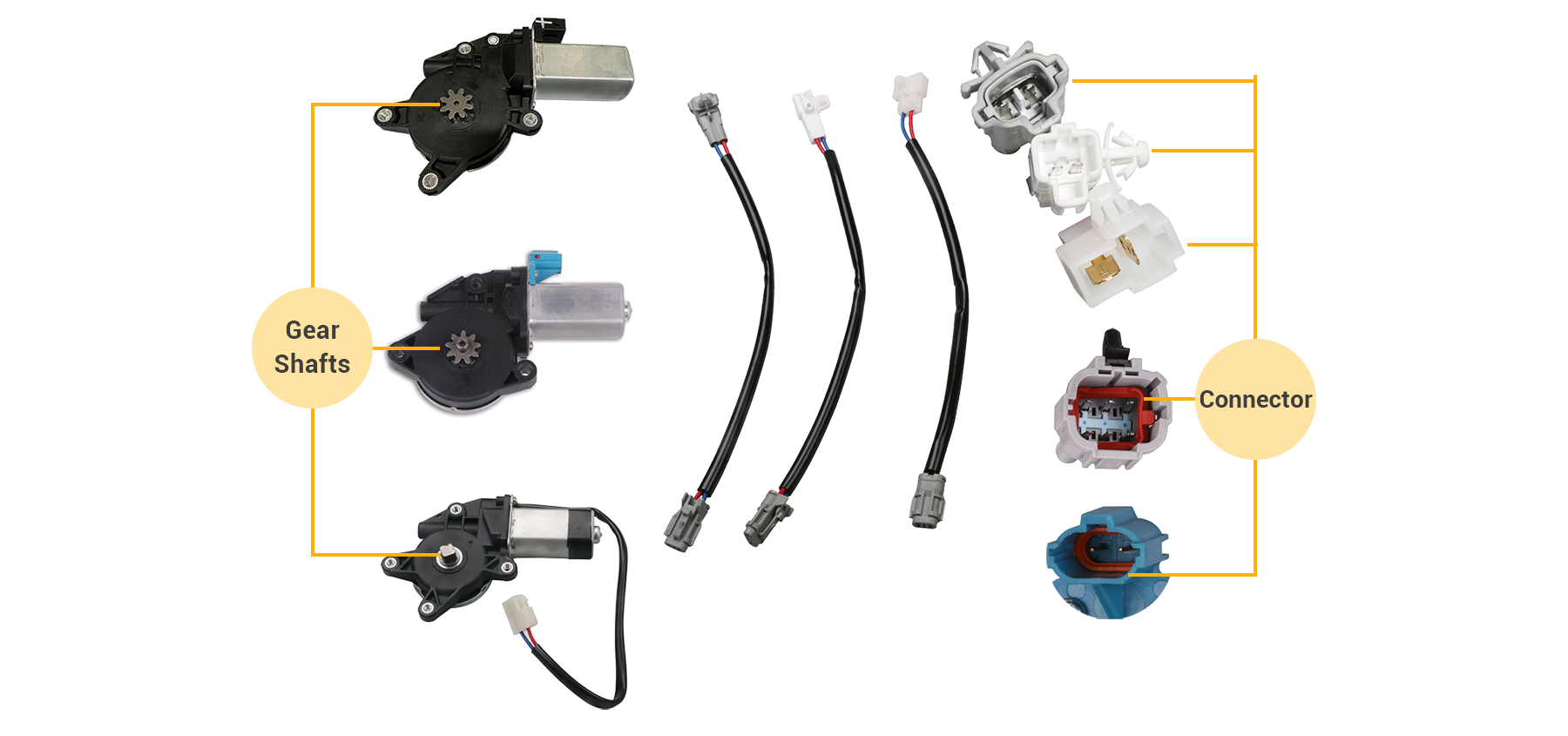

Window Motor Components

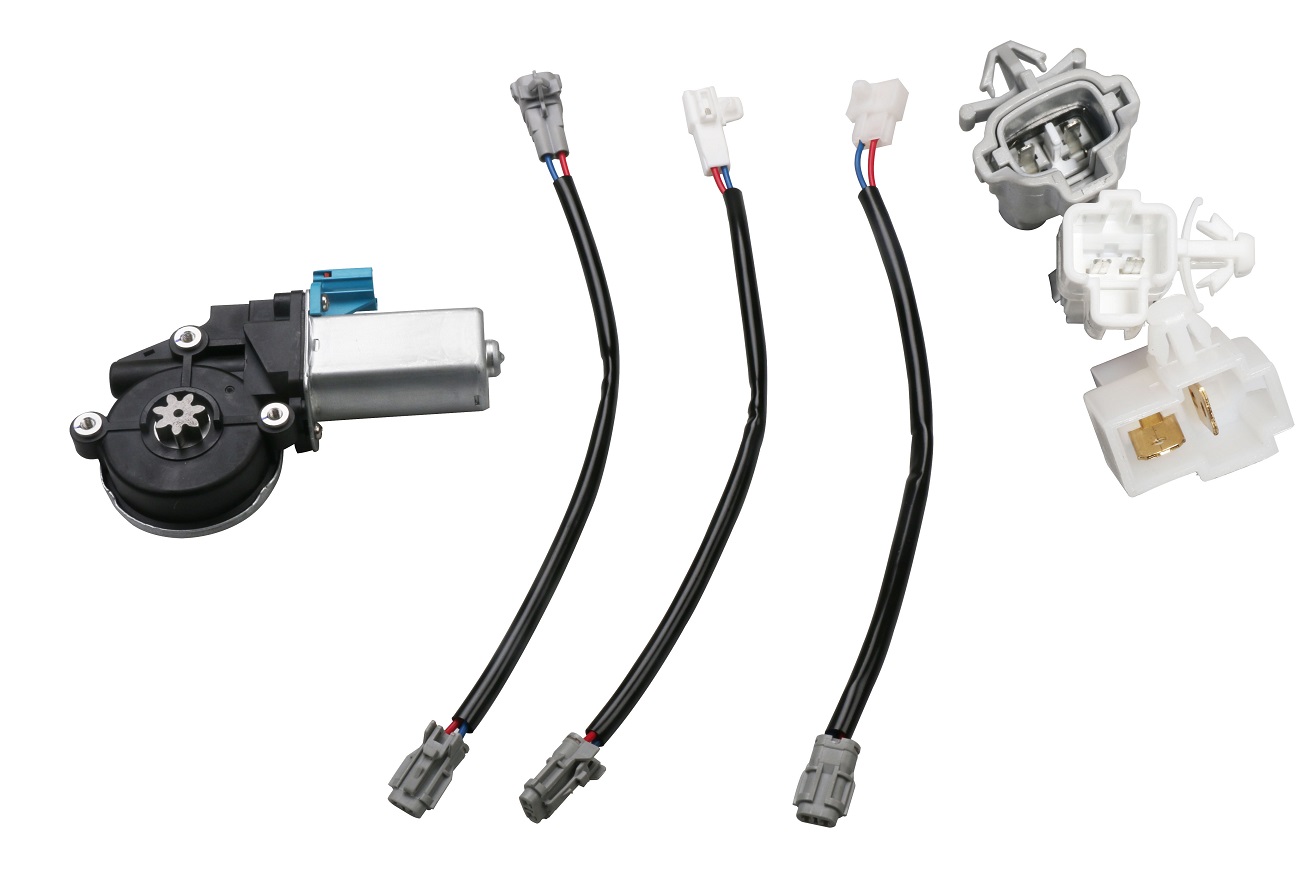

Universal Window Motor

The gear shafts and connectors are standard components,can be replaced as per customers' requirement quickly. Saving the developping cost and reduce developping lead time.

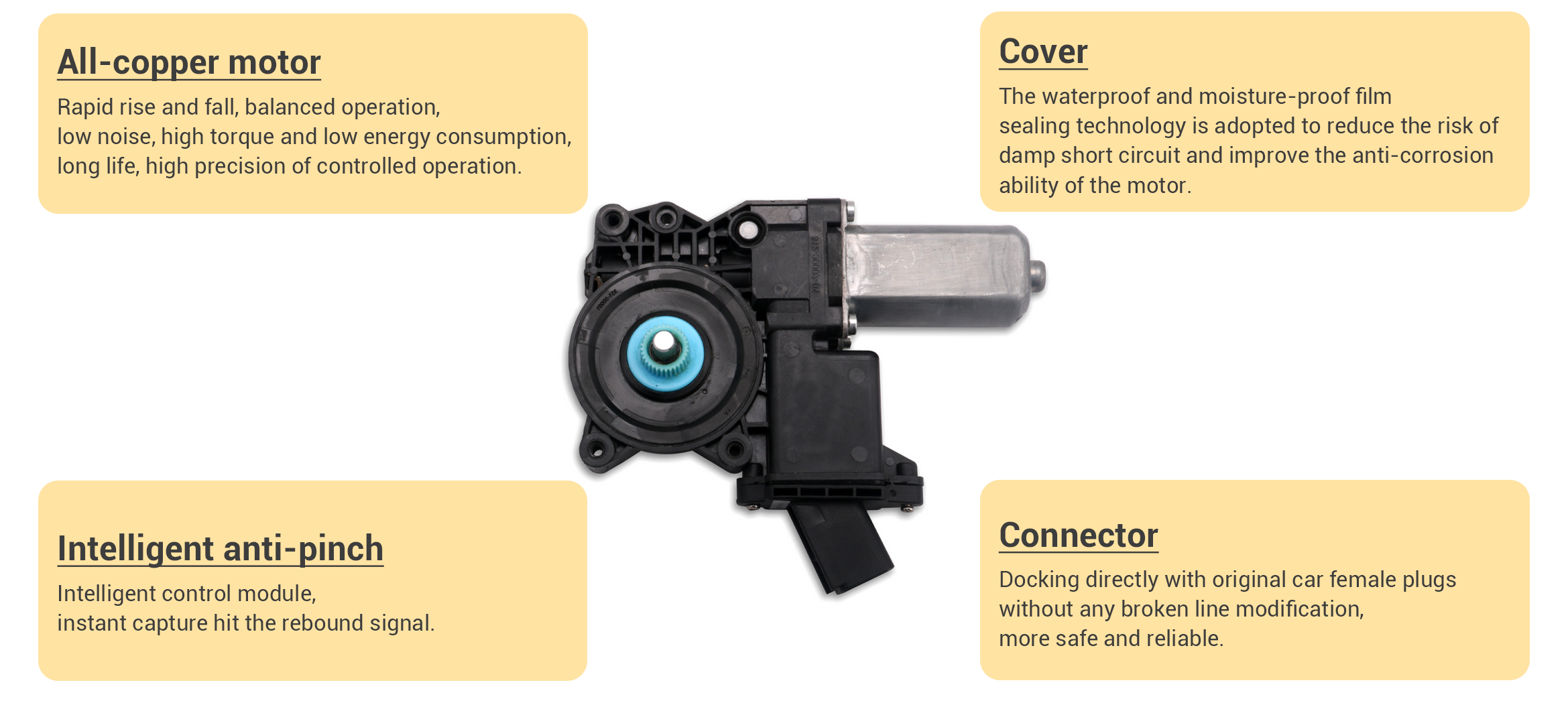

Hi-intelligence Anti-pinch Function Window Motor

Adopting FREESCALE automobile microcontroller which is developped from Freiburg Germany. The intelligent AI control module is developed by our professional R&D team, with deep self-learning function, forming window brain to control intelligently.

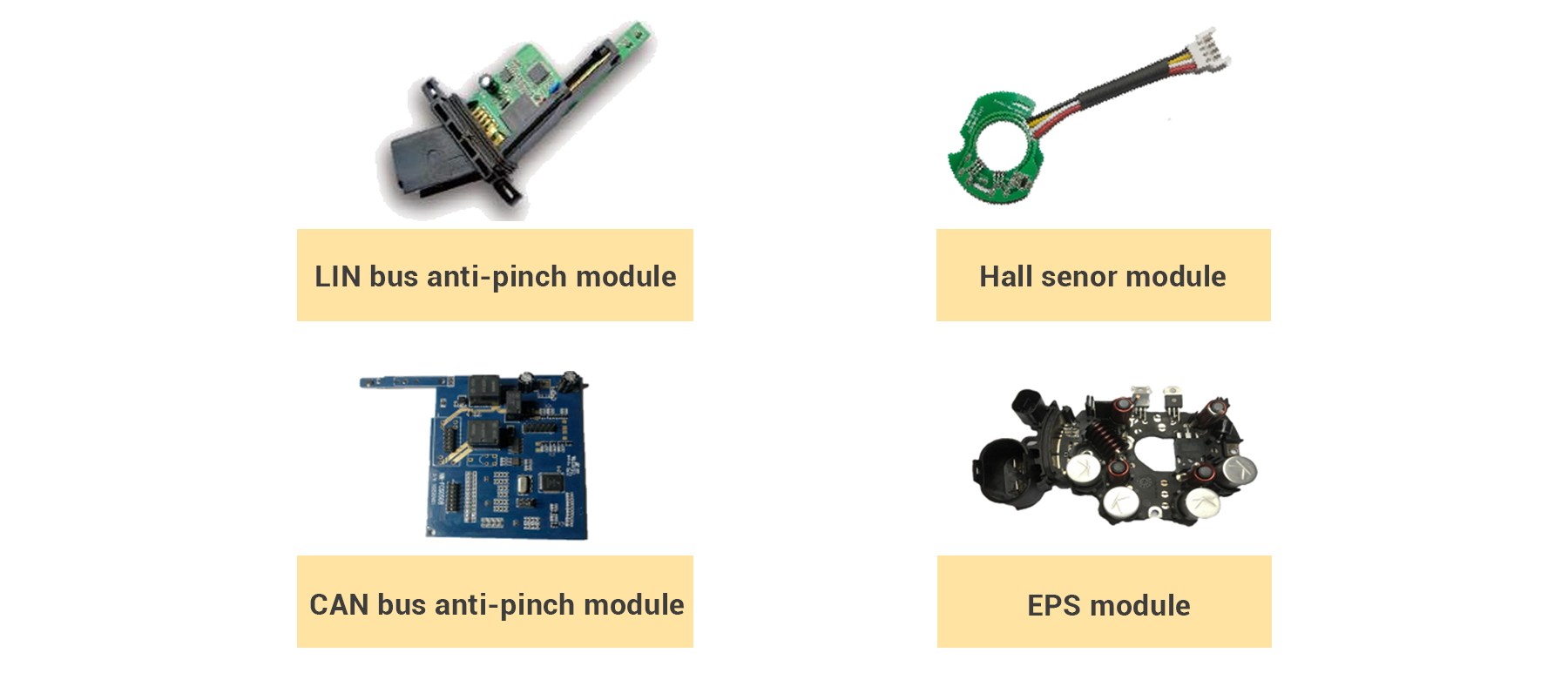

Hi-intelligence Anti-pinch Function Module

Hall displacement sensor makes movement more precise and responsive. Operating temperature: -45~105℃, resisting extreme working environment. Keep the older and children safe and secured. Tens of millions of users experience and real feedback: smart and more secure.

Compatible Brands

Only for reference, not a list of all, 95% passenger car coverage in domestic market and quick growing worldwide.
